HOWTO: Deploy and Configure the VMware NSX Manager Virtual Appliance - Part 2
VMware NSX-V VCAP6-NV VCIX6-NV HOWTO
Published on 16 July 2017 by Christopher Lewis. Words: 301. Reading Time: 2 mins.
![](/img/2017/07/16/vmwarensx.png)
This is the second of three posts in which we look at how to deploy and configure the VMware NSX Manager.
The posts will cover the following topics:
- Deploying the VMware NSX Manager Appliance Appliance. ( HOWTO )
- Completing VMware NSX Manager Initial Configuration. (THIS POST)
- Integrating VMware NSX Manager into VMware vCenter. ( HOWTO )
VMware NSX Manager Initial Configuration
Using a browser, navigate to the VMware NSX Manager Virtual Appliance (https://nsx-manager.fqdn
).
![](/img/2017/07/16/nsx-man-config-01.png)
Enter admin as the User name and the Password (set during the installation above) then click Login.
![](/img/2017/07/16/nsx-man-config-02.png)
Configure NTP Server Settings
Note: As with anything computer/network related, accurate time is #important.
Click Manage Appliance Settings.
![](/img/2017/07/16/nsx-man-config-03.png)
At Time Settings, click Edit.
![](/img/2017/07/16/nsx-man-config-04.png)
Enter each NTP Server (delimited by a comma), (optionally) select the Timezone from dropdown and click OK.
![](/img/2017/07/16/nsx-man-config-05.png)
Click Summary.
![](/img/2017/07/16/nsx-man-config-08.png)
Under the NSX Management Components sections, locate the NSX Management Service and click Stop.
![](/img/2017/07/16/nsx-man-config-09.png)
Wait for the NSX Management Service to change to Stopped and then click Start.
Configure SYSLOG Server Settings
Click Manage and then click General.
![](/img/2017/07/16/nsx-man-config-05.png)

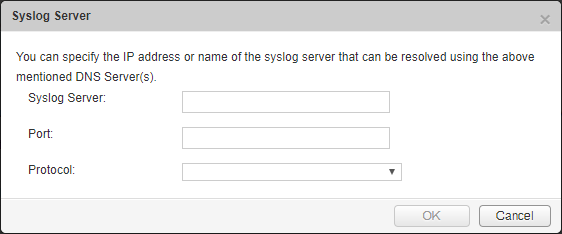

At Syslog Server, click Edit.
![](/img/2017/07/16/nsx-man-config-06.png)
Enter the address of the Syslog Server, the Port and select the Protocol from the dropdown.
![](/img/2017/07/16/nsx-man-config-05-1.png)
Click OK.
![](/img/2017/07/16/nsx-man-config-07.png)
Configure SSL Certificates
Click Manage and then click SSL Certificates.
![](/img/2017/07/16/nsx-man-config-10.png)
Click Generate CSR.
![](/img/2017/07/16/nsx-man-config-11.png)
Fill out the CSR with the Common Name, Organization Unit, Organization Name, Locality Name, State Name and select the appropriate Country Code from the drop down.
![](/img/2017/07/16/nsx-man-config-12.png)
Click OK.
![](/img/2017/07/16/nsx-man-config-13.png)
Click Download CSR, save the generated CSR and submit it to you Certificate Authority to create an SSL Certificate.
Note: You will need to create an SSL Certificate Chain that includes any sub-CA and CAs.
Click Import.
![](/img/2017/07/16/nsx-man-config-14.png)
Click Choose File, locate the SSL Certificate Chain and click Open.
![](/img/2017/07/16/nsx-man-config-15.png)
Click Import.
![](/img/2017/07/16/nsx-man-config-17.png)
Click on the cog in the top right of the window and select Reboot Appliance.
![](/img/2017/07/16/nsx-man-config-18.png)
Click Yes.
